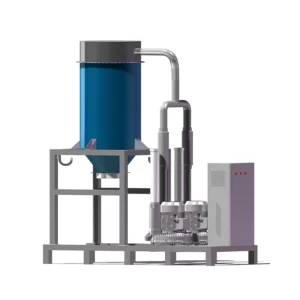

Custom Design Vacuum Systems CYSD7

Description

The vacuum cleaner host can be equipped with a 12.5-25kw high-pressure fan, and the maximum pressure can reach 50kpa;
The collection device is equipped with a discharge valve (the discharge time can be timed);
Pulse backwash cleaning and filtering; there is a built-in cyclone separator inside;
Pressure relief device, when a certain pressure is reached, the pressure relief device automatically opens to protect the motor;
The built-in main electronic control components (such as inverter, PLC, touch screen) turbine motor can realize independent control of the electric box.
Built-in overload, overtemperature, phase loss, overvoltage and other protections, the control panel is simple and generous, and can be easily controlled; the alarm indication and start and stop buttons on the panel.
It is required to have a humanized interactive interface and an intelligent control screen; it is designed with multiple visual adjustment functions such as pressure display, temperature display, temperature alarm, pressure alarm, running time, backwash time, إلخ.
It can record and export equipment working data (pressure value, temperature value, running time, etc.) and fault alarm information.
When the temperature reaches or the negative pressure reaches the set value, it will automatically stop after 30 seconds.
Touch screen manual/automatic switching, convenient for later maintenance.
This equipment can be equipped with: high-pressure blower, Roots blower, multi-stage centrifugal blower according to requirements.

Parameter

Type	Units	CYSD7/12.5	CYSD7/15	CYSD7/18.5	CYSD7/20	CYSD7/25
Motor Type		High pressure blower	High pressure blower	High pressure blower	High pressure blower	High pressure blower
Max pipe distance	M	30M	40M	50M	60M	60M
Volts	V/Hz	380/50	380/50	380/50	380/50	380/50
Power	Kw	12.5	15.0	18.5	20 (pair)	25 (pair)
Vacuum	Kpa	34	38	42	48	52
Airflow	M³/h	1050	1050	1050	1350	1350
Filter	c㎡	16.8	16.8	16.8	16.8	16.8
Noise	dB(A)	74	74	74	74	72
Suctiner	mm	40-100	40-100	40-100	40-100	40-100
Volume	L	600	600	600	600	600
Weight	kg	312	322	326	378	385
Discharging Method	Pneumatic butterfly valve	Pneumatic butterfly valve	Pneumatic butterfly valve	Pneumatic butterfly valve	Pneumatic butterfly valve	Pneumatic butterfly valve
Dimensions	mm	19108102150

Features

High-Pressure Fan Options: The vacuum cleaner can be equipped with two 12.5-25 kW high-pressure fans, achieving a maximum pressure of 50-70 kPa.
Efficient Discharge System: The collection device includes a discharge valve with customizable timing for effective unloading.
Advanced Filtration: Features pulse backwash cleaning and an internal cyclone separator for enhanced filtration.
Automatic Pressure Relief: Equipped with a pressure relief device that activates automatically to protect the motor when set pressure is reached.
Intelligent Control System: Includes built-in electronic components (inverter, PLC, touch screen) for independent control, along with overload, overtemperature, phase loss, and overvoltage protections, all managed via a user-friendly interface.

التعليمات

س: ما هي أنواع معدات التنظيف التي تقدمها?
A: نحن نقدم فراغات تجارية, الفراغات الصناعية, الفراغات الرطبة والجافة, كنس, وأجهزة تنظيف الأرضية التلقائية بالكامل.

س: ما هي الصناعات التي تناسب منتجاتك?
A: تستخدم معداتنا على نطاق واسع في المصانع, الفنادق, المستشفيات, أرصفة, البترول, كهرباء, السكك الحديدية وغيرها من الصناعات.

س: هل يمكن تخصيص المعدات?
A: نعم, we can professionally customize various cleaning equipment according to the customer’s on-site environment and needs.

س: كيفية الحصول على خدمة بعد البيع?
A: لدينا مركز إصلاح مخصص لتوفير صيانة المعدات وخدمة ما بعد البيع.

س: كيف يمكنني الاتصال بك لمزيد من المعلومات?
A: يمكنك الاتصال بنا من خلال موقعنا على الويب أو الاتصال بخط خدمة العملاء لدينا للحصول على مزيد من المعلومات والدعم.

To enhance customer experience, our equipment’s appearance and performance will be updated periodically.
Please اتصل بنا for the latest product specifications and images.
