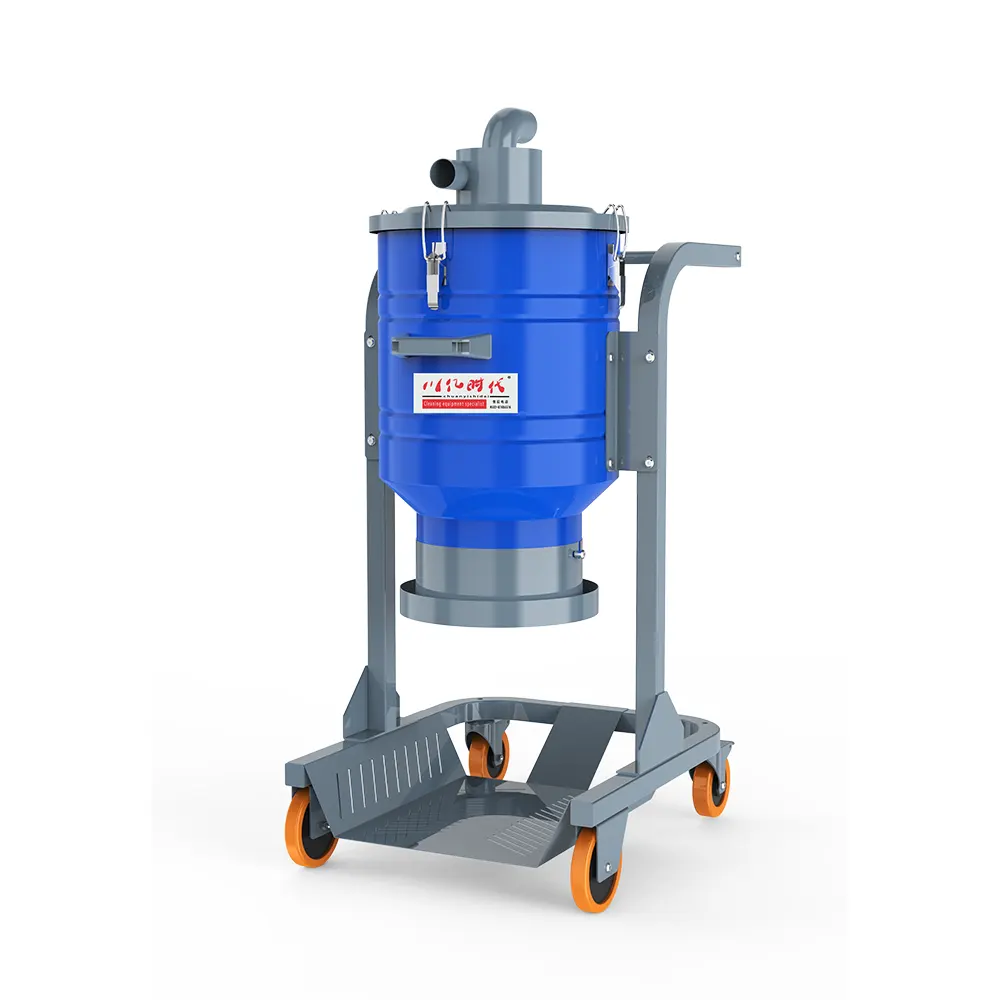

Bag Cyclone Separator XF-2

XF-2

In stock, shipped directly

Quick Info:

  • Volts: 220/50 V/Hz
  • Power: 3600 W
  • Noise: 69 dB(A)
  • Suctiner: 50mm
  • Volume: Continuous bagging
  • Weight: 56 kg
  • Dimensions: 550*550*1280 mm

Description
Parameter
Features
التعليمات

Description

The cyclone separator is a dry gas-solid separation device that uses the centrifugal force generated by the high-speed rotation of the gas-solid mixture to separate dust from the airflow. Since the centrifugal force on the particles is much greater than the gravity and inertia, the airflow will change from linear motion to circular motion. Most of the rotating airflow flows downward from the cylinder to the cone along the wall of the device in a spiral shape.

In addition, the particles are thrown toward the wall of the device under the action of centrifugal force. Once the dust particles contact the wall of the device, they lose their inertia and fall along the wall with the momentum of the downward axial velocity near the wall. After falling, a vacuum is formed at the bottom and falls into the collection bucket from the powder outlet.

This cyclone separator is suitable for the collection of large amounts of dust and fine dust, such as floor grinding, bagged dust, cement plants, shot blasting, chemical plant dust, large amounts of dust collection and other harsh dust removal work.

Parameter

Type Units XF-2
Volts V/Hz 220/50
Power W 3600
Noise dB(A) 69
Suctiner mm 50
Volume L Continuous bagging
Weight kg 56
Dimensions mm 550*550*1280

Features

  • Efficient Separation: Quickly separates dust from gas-solid mixtures using centrifugal force.
  • Compact Structure: Compact design occupies less space and is easy to install.
  • Wide Applicability: Suitable for various applications such as floor grinding, bagged dust, and cement plants.
  • Low Maintenance Requirement: Simple structure allows for easy maintenance, reducing downtime.
  • High Dust Collection Capacity: Effectively collects large amounts of dust and fine particles, ensuring a clean working environment.

التعليمات

س: ما هي أنواع معدات التنظيف التي تقدمها?
A: نحن نقدم فراغات تجارية, الفراغات الصناعية, الفراغات الرطبة والجافة, كنس, وأجهزة تنظيف الأرضية التلقائية بالكامل.

س: ما هي الصناعات التي تناسب منتجاتك?
A: تستخدم معداتنا على نطاق واسع في المصانع, الفنادق, المستشفيات, أرصفة, البترول, كهرباء, السكك الحديدية وغيرها من الصناعات.

س: هل يمكن تخصيص المعدات?
A: نعم, we can professionally customize various cleaning equipment according to the customer’s on-site environment and needs.

س: كيفية الحصول على خدمة بعد البيع?
A: لدينا مركز إصلاح مخصص لتوفير صيانة المعدات وخدمة ما بعد البيع.

س: كيف يمكنني الاتصال بك لمزيد من المعلومات?
A: يمكنك الاتصال بنا من خلال موقعنا على الويب أو الاتصال بخط خدمة العملاء لدينا للحصول على مزيد من المعلومات والدعم.

To enhance customer experience, our equipment’s appearance and performance will be updated periodically.
Please اتصل بنا for the latest product specifications and images.
